Basic Specification & Main parameters

1

- Frame class

- Rated working voltage

63A

240V / 415V

1

- Rated frequency

- Rated working current

50/60 Hz

16, 20, 25, 32,

40, 50, 63A

3

- Rated residual operating current

- Rated residual un-operating current

0.03, 0.1A

0.015, 0.05, 0.15, 0.25A

4

- Sensibility

- Maximum operating time

A type, AC type

5

- Rated making and breaking capacity

- Limiting value of un-operating current

I △n   t ≤ 0.1s, 51△n  t ≤ 0.04

6

- Rated limiting short-circuit current

- Pole number

6000A

2P, 4P

7

- Mechanical life

- Electric life

10000

4000

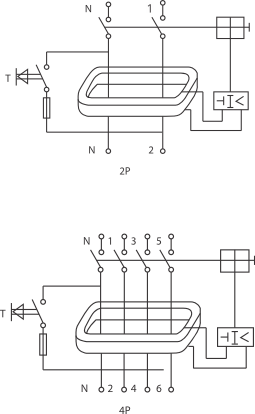

Operation Principle

Dimensi (mm)

RCCB

SKU 999

4 phase

SKU 999

2 phase
