Basic Specification & Main parameters |
|
|
Frame Class Rated Working Voltage |
63A 240V |
|
Rated Frequency Rated Working Current |
50/60 Hz 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
|
Making and Breaking Capacity Release Type |
4500A C |
|
Poles Mechanical Life |
1, 3 P 8000 |
|
Electric Life |
4000 |
|

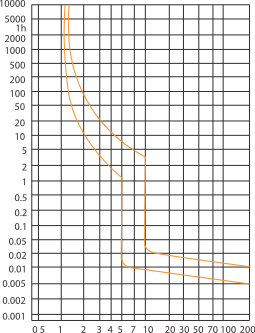

Sequence NO. |
Release |
Test Current I.In |
Start State |
Tripping Time |
Expected Result |
|
1 |
C |
1.13 In |
Cold State |
t ≤ 1h |
Not Tripping |
|
2 |
C |
1.45 In |
Start right after the serial NO. 1 test |
t < 1h |
Tripping |
|
3 |
C |
2.55 In |
Cold State |
1s < t < 60s |
Tripping |
|
4 |
C |
5 In |
Cold State |
t ≤ 0.1s |
Not Tripping |
|
5 |
C |
10 ln |
Cold State |
t < 0.1s |
Tripping |
